Creating Tags

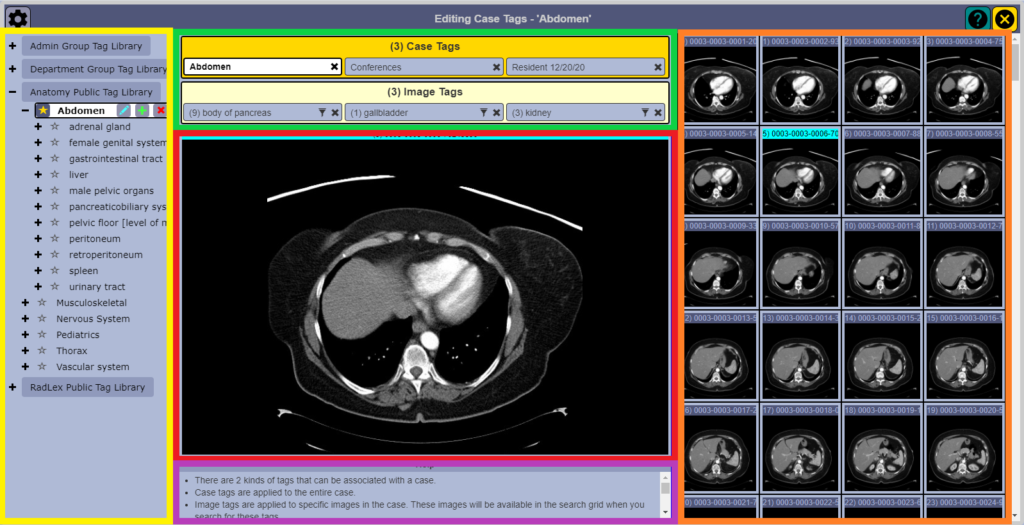

This case has 3 Case tags, one of which (Abdomen) is selected and shows in the tag tree on the left. This case also has 3 image tags, with Body of Pancreas (9 images), Gallbladder (1 image) and kidney (3 images).

Tag Editor

Tag Libraries (Yellow)

Tag libraries are arranged in a hierarchical manner.

  • Black + to see child tags
  • Star to select tag
  • Pencil to edit tag name
  • Green + to add child tag
  • Red X to delete tag and child tags

Case and Image Tags (Green)

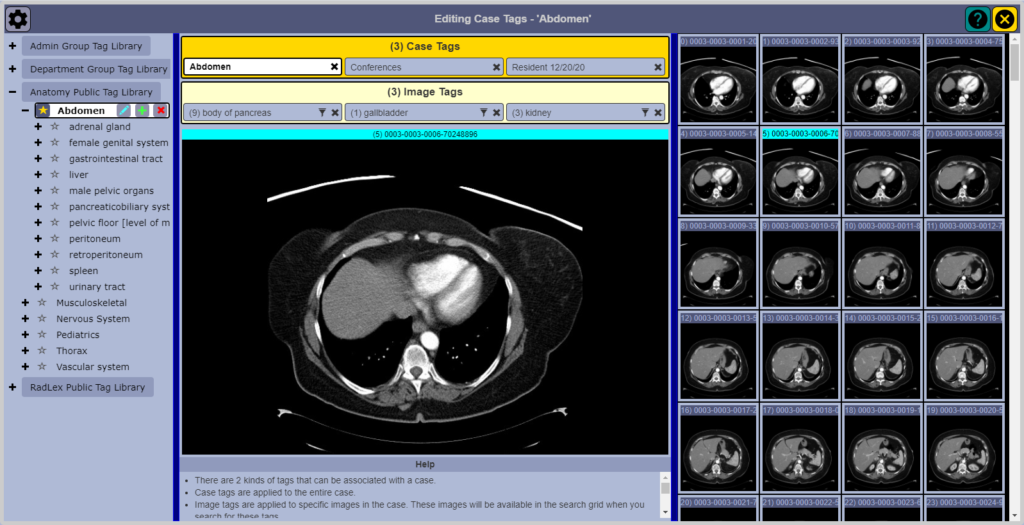

Click on the Case or Image tag section to activate that section. The gold background indicates which section is activated.

Case tags can be added by selecting tags.

Click to select image(s) before selecting image tags. The Tag libraries are disabled until image(s) are selected.

Selected Image (Red)

Currently image is shown. Please cursor over this section and use scroll wheel to advance through images.

Help (Purple)

Images (Orange)

Images in the case are shown. Place cursor over this section and use scroll wheel to advance.


Adding Tags to Case

Click + to open Tag Library
Select Tag (Liver), click Star icon to select Tag

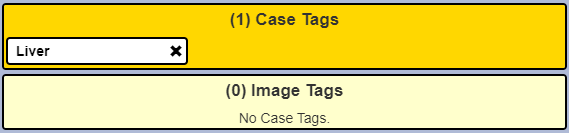

Tag (Liver) added to Case Tags
Smaller left tag tree section
Larger left tag tree section and smaller images on right.

Adding Tags

Click + to open Tag Library
Select Tag, Click + to add Tag

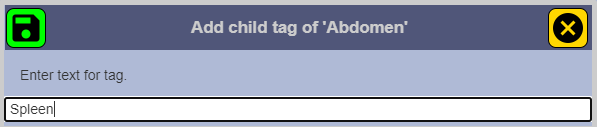

Add Tag (Spleen), click Save icon
Tag (Spleen) Added

Editing Tags

Click + to open Tag Library
Select Tag (Abdomen), Click Edit icon

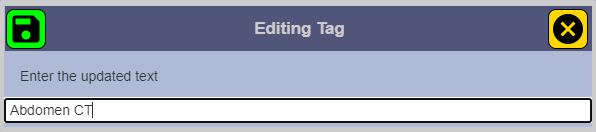

Edit Tag name, click Save icon
Tag changed (Abdomen CT)

Deleting Tags

Click + to open Tag Library
Select Tag (Abdomen), Click Delete icon

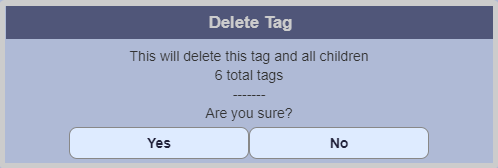

Confirm Tag deletion including all child Tags
Tag (Abdomen) and all child tags are deleted

Changing Size of Tag Editor Sections

Help

Help section can be turned on or off by clicking the Help icon (Question mark) in the right upper corner. There are 2 kinds of tags that can be associated with a case.

Case Tags

Case tags are applied to the entire case.

To add a case tag, click on the “case tags” panel, then select a tag in the tree on the left.

Image Tags

Image tags are applied to specific images in the case. These images will be available in the search grid when you search for these tags.

To add an image tag, click on the “image tags” panel, then select one or more images, then select a tag in the tree on the left. The panel on the left will be disabled until an image is selected.

Help Settings

To change the number of columns in the image grid, either change it in the settings panel or <Shift> + mouse wheel while over the image grid.

To change the number of columns in the selected tag grid, either change it in the settings panel or <Shift> + mouse wheel while over the selected tags panel.

To change the maximum number of rows in the selected tag grid, either change it in the settings panel or <Alt> + mouse wheel while over the selected tags panel.

Resize Splitter Bars

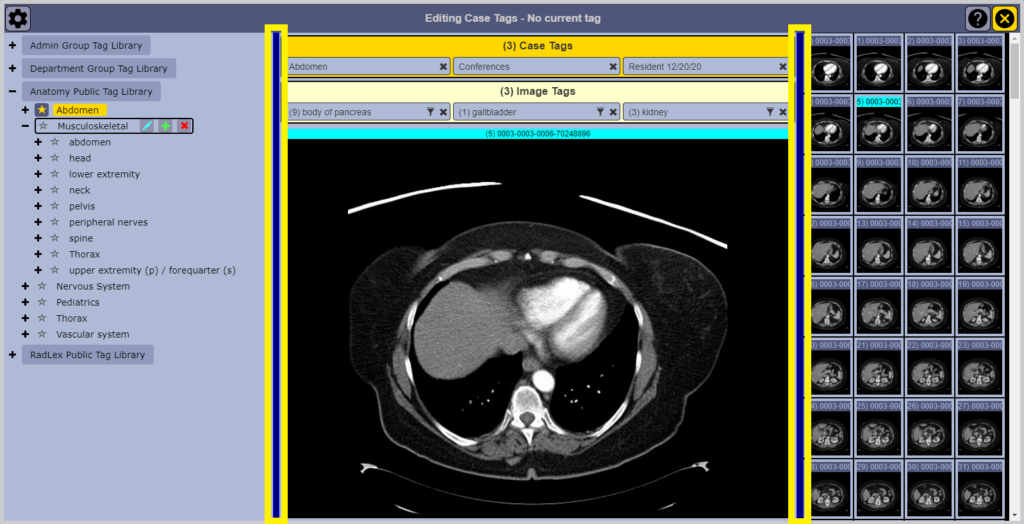

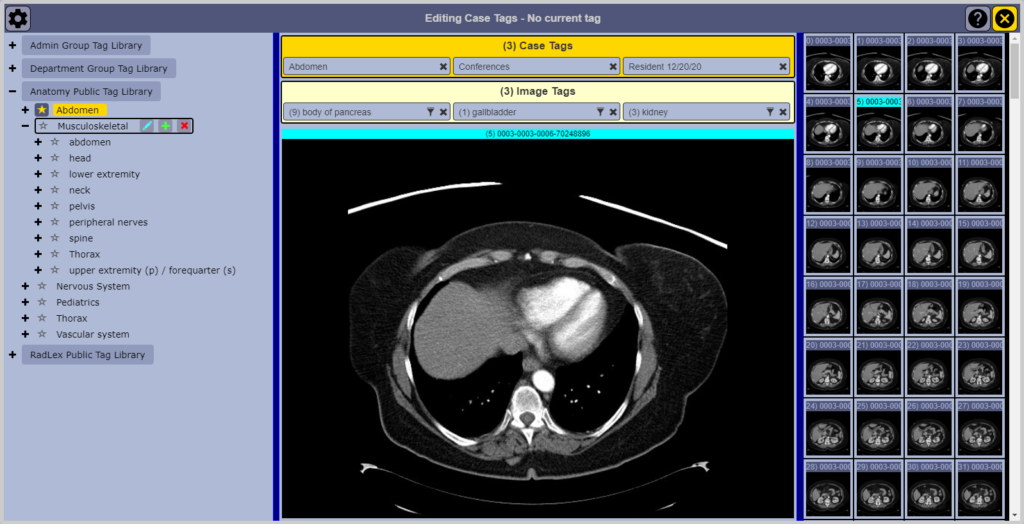

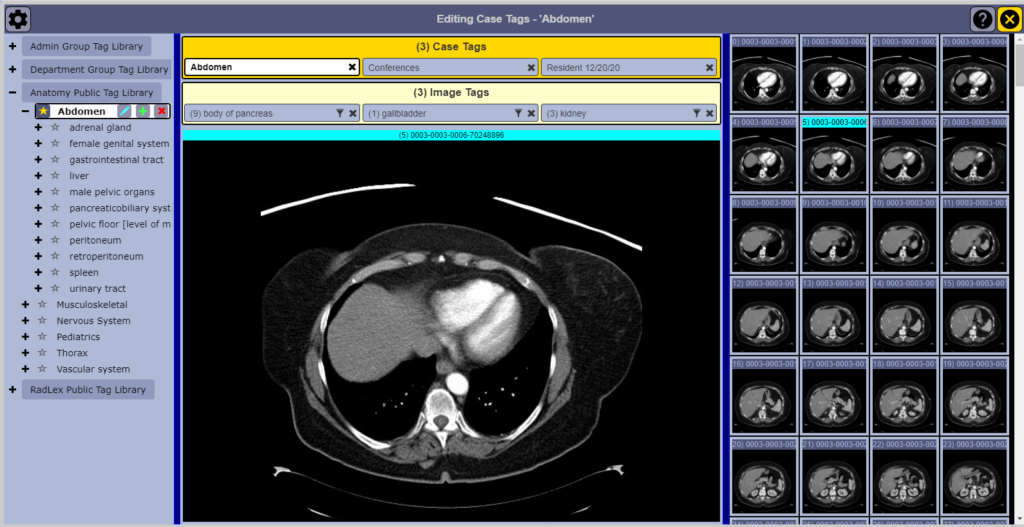

Click and drag the vertical splitter bars (yellow) to change size of the sections. Similar for portrait mode.

You can hide the help panel by clicking on the question mark on the title bar.
