Presentations Overview

A presentation is a group of teaching file cases presented to the audience in a way similar to a PACS setting, but with interactive components.

Several features of RadPix Presentations align with current educational and training concepts. Students scroll through a stack of images on their own device, i.e. laptop, iPad, or smart phone. The images may be from studies from different dates and modalities similar to a PACS setting.

In a typical “hot seat” radiology format, a student describes the findings and comes up with a differential diagnosis. However, this only tests a single student. However, by adding multiple choice questions to the case and having all students answer, the educational interaction extends to the entire audience. After all students have answered the question(s), a single student can then describe the findings and provide a diagnosis. Gamification can also be added by showing the audience a leaderboard cased on number of correct answers. These interactive features have been shown to promote better engagement of the audience.

An optional feature allows the student to have the ability to window and level the images, although the window and level are typically set correctly on the initial image load.

All annotated image is bookmarked so the user can quickly find the images of interest.

Aggregate anonymous audience responses can be shown to verify understanding of the concepts. If the audience does very well on a set of questions, additional time may not be needed for explanations, but if most of the student answers are incorrect or scattered across several answers, more time can be spent discussing the case.

RadPix Presentation Use Cases

Group of Cases

A group for cases for residents, students to review can be grouped into a Presentation.

  • Create a Presentation
  • Add cases
  • Add supplementary file(s)
  • Get URL for participants from Presentation list or see bottom of this page for URL.
  • Start Presentation as “Ongoing”
  • Stop Presentation as desired
  • View Presentation performance statistics

Live Presentation

A resident conference can be given with a RadPix Presentation.

  • Create a Presentation
  • Add cases
  • Add supplementary file(s)
  • Get URL for participants from Presentation list or see bottom of this page for URL.
  • Start Presentation as “Immediate”
  • Click Presenter button
  • Stop Presentation when completed
  • View Presentation performance statistics

Example : Recent RSNA meetings used RadPix for interactive presentations Link.

View presentations

Click the Presentation icon from the main page.

A window appears, showing the current status of the user’s presentations.

Presentation list, showing 1 Active Presentation and 2 total presentations for the user (My Presentations)

Active Presentations

Presentation NameName of presentation
CasesNumber of Cases in the presentation
PresenterUser that set up currently running event
Start / StopTime of start and stop of presentation
JoinPresenter and participant Button to launch presentation with role.
Copy to Clipboard copies the corresponding Presenter or Participant URL which can be emailed or displayed
ActionSchedule and Stop buttons
IDIdentification number of presentation

Scheduled Presentations

Presentation NameName of presentation
CasesNumber of Cases in the presentation
PresenterUser that set up currently running event
Start / StopTime of start and stop of presentation
LinksPresenter and participant links which can be copied to clipboard and emailed.
ActionSchedule and Stop buttons
StartStart presentation before scheduled time
IDIdentification number of presentation

My Presentations

Presentation NameName of presentation
CasesNumber of Cases in the presentation
Created ByCreator of the presentation
EditClick to Edit
StartClick to Start
StopClick to Stop
SchedSchedule Presentation Event
PresCopy URL for Presenter to clipboard
PartCopy URL for Participant to clipboard
DeleteDelete Presentation
IDIdentification number of presentation

Create New Presentation

To create a new presentation, click on the icon in the left upper corner of Presentation list to create a new presentation.

New Presentation
NameName of presentation. Note the “Missing Presentation Name” message in the magenta box at the top of the page to remind the editor to add a name to the presentation.
DescriptionNumber of Cases in the presentation. Note the “Missing Presentation Description” message in the magenta box at the top of the page to remind the editor to add a description to the presentation.
Presenter Title URLThe title that is shown at the top of the Presenter’s screen during a presentation. This URL continues to show people that show up late how to access the system. This URL is always visible.
Presenter Help URLAllows an easy to find help page for participants that is always visible on the presenter’s web page.
Initial LayoutDetermines if 1 image (1 x 1), 4 images (2 x 2) or 6 images (3 x 2) show for the presenter and participants. The display can be changed during the presentation if desired.
Show only 1 question at a timeThis option requires the participant to answer a question before seeing the next question. If the answer to the 1st question is given in the 2nd question, this would be useful. The user can’t go back and change answers.
Participant do not show correct answerThe default setting is to bring up a popup that tells the user if his/her answer is correct, and also displays any reasons for the answers.
In a live presentation, all participants can answer the questions. When all participants have answered the questions, one of them can be selected to discuss the case prior to the answer being displayed.
Presenter show time up counterOn presenter view, a clock showing the elapsed time for shing the case allows the presenter to see how long the case has been displayed. Typical times are 30 seconds for easy questions, to 1 minute for more difficult questions.
Presenter show history above questionsOption to show case history.
Created byPresentation creator
View PermissionsUsers or Groups that may view the Presentation
Edit PermissionsUsers or Groups that may edit the Presentation
CasesCases added to the presentation will be visible here.

Media

Presentation Logo Image

Drag and drop a 256 x 256 pixel image into this region to add a logo to the presentation. The logo will be visible to the participants when they select a presentation.

The following window is available by adding /part to the base RadPix URL.
For instance, https://mobilerad.com/rtfs/part where https://mobilerad.com/rtfs is base RadPix URL.

Participant Presentation Selector

Note use of three different logos in the selector above. The far right column shows the status of each of the presentations.

Presentation Reference Media

Drag and drop a PDF or PowerPoint file into this region. The presenter and participants will all have access to this file throughout the presentation. This file could include information such as tumor staging, that may be difficult to remember.

Presentation Supplement Media

Drag and drop a PDF or PowerPoint file into this region. Only the presenter will have access to this file from the presentation. It may be used for introductory information that will be useful to participants as they review the cases.

Edit Presentation

NameName of Presentation
DescriptionAdditional description of Presentation
Initial LayoutInitial image layout for presenter and participants can show 1 (1 x 1), 4 (2 x 2) or 6 (3 x 2) images
Created byPresentation creator
View PermissionsRadPix groups or users that can view the Presentation
Edit PermissionsRadPix groups or users that can edit the Presentation
Presentation LogoLogo that will be used to designate this presentation

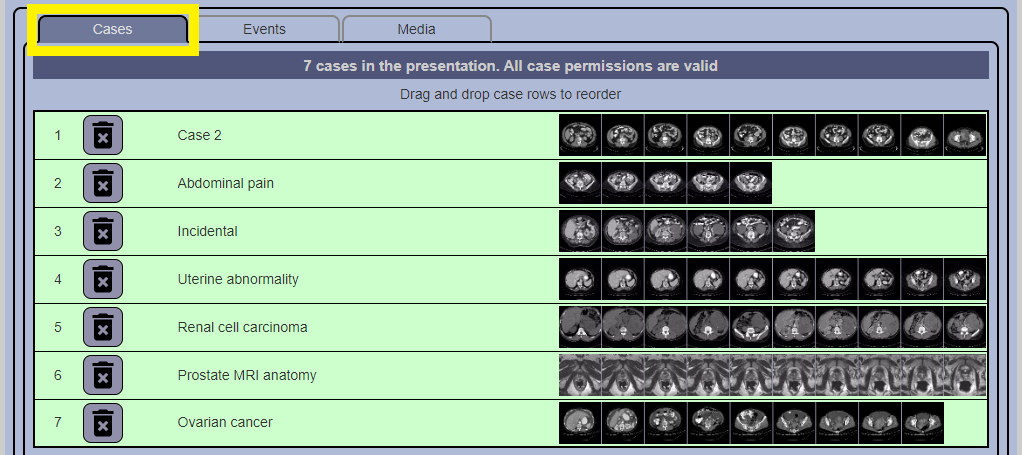

Cases

Cases display in this section.

Reorder cases Left click on a case and drag it to a new position.
Sort cases alphabetically by Title.
Sort cases by the numbers in the Title.
For instance, “Liver – Case 1” would sort before “2. Liver Tumor”.
Save current case order.
Delete case from presentation.
View case.

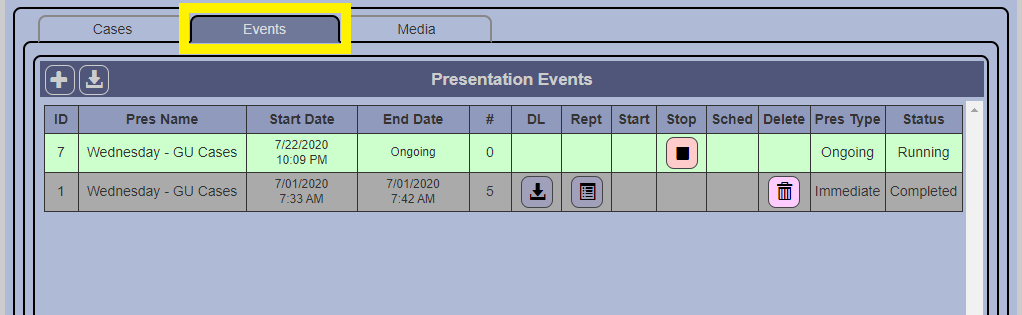

Events

The Events tab allows the user to schedule and start a presentation, and also see the status of the current presentation. Completed presentations are also visible.


Scheduling Presentations

Select the start and end time and date and then click the green “Schedule Presentation” button. Clicking the duration of the presentation will adjust the end time as needed.

Start Presentation

Select end time for presentation.

Presentation Selection

A presentation can be selected by either

  • From Presentation Selection
    • Clicking the Presenter button
    • Clicking the Copy Presentation URL button to copy the URL to the clipboard
  • Presenter
    • Navigating to the base RadPix URL and adding /pres to see all running presentations.
      • For instance, https://mobilerad.com/rtfs/pres
      • https://mobilerad.com/rtfs is base RadPix URL
    • Shows all Presentations a user can start based on permissions
  • Participants
    • Navigating to the base RadPix URL and adding /part to see all running presentations.
      • For instance, https://mobilerad.com/rtfs/part
      • https://mobilerad.com/rtfs is base RadPix URL
    • Shows all Presentations a user can access based on permissions
